Beyond the End-Effector:
Learning Whole-Arm Contact Manipulation
from Human Demonstrations

Bo-Ruei Huang, Daniel Seita, Erdem Bıyık
University of Southern California
Conference on Robot Learning (CoRL) 2026
arXiv Paper (PDF)

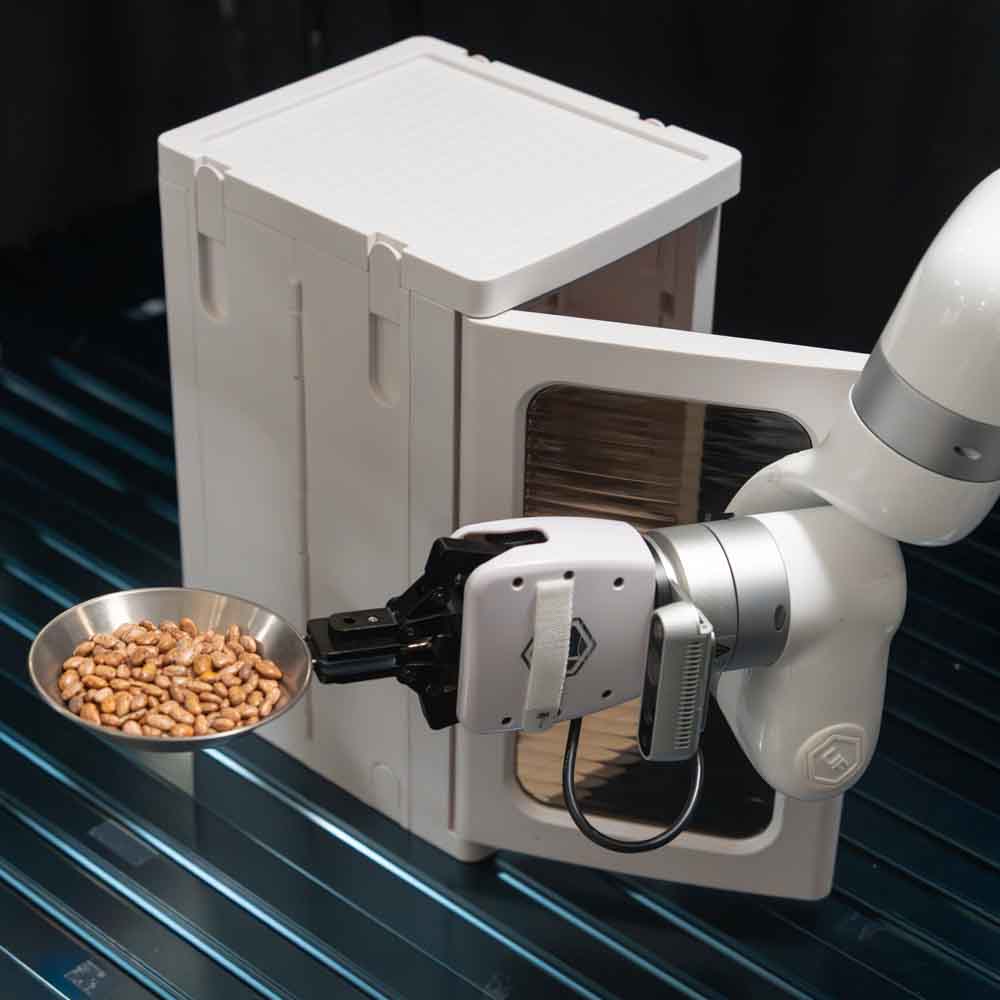

The hand holds a plate level while the arm pushes the cabinet door shut.

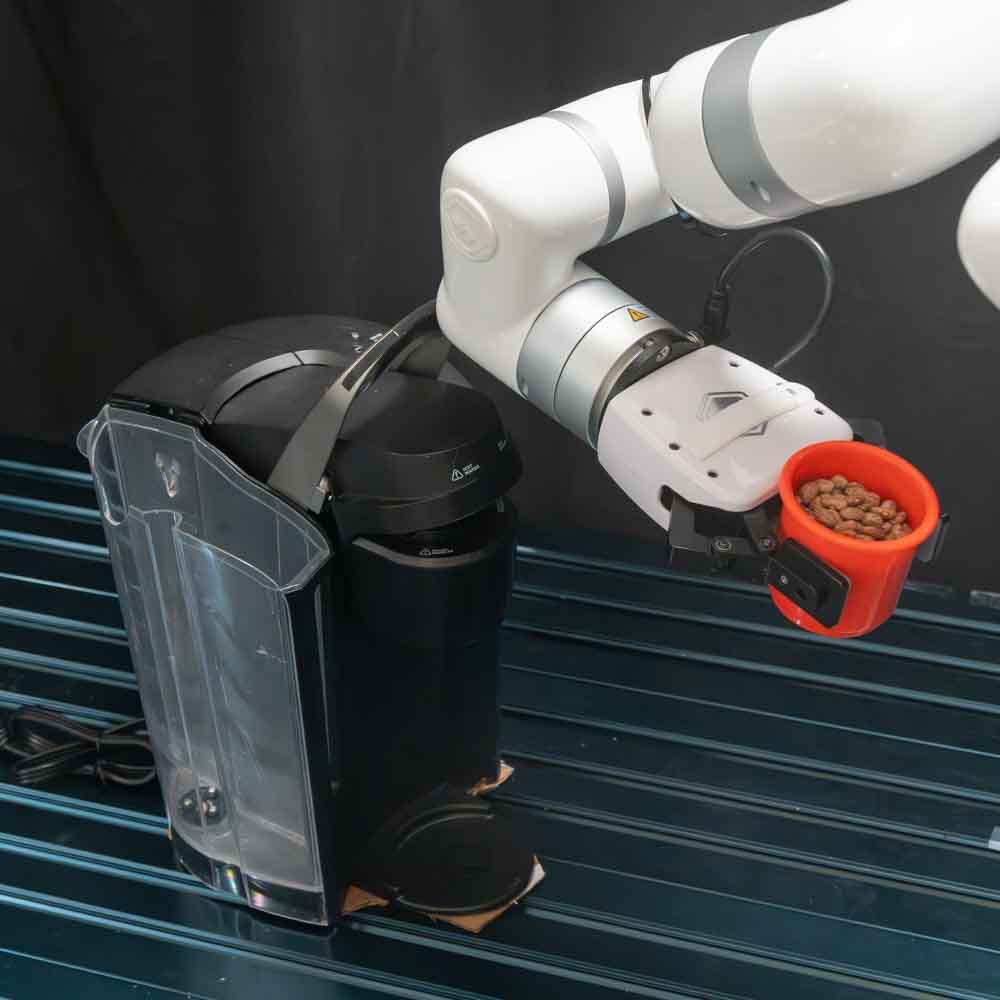

The hand keeps a cup upright while the arm opens the coffee machine.

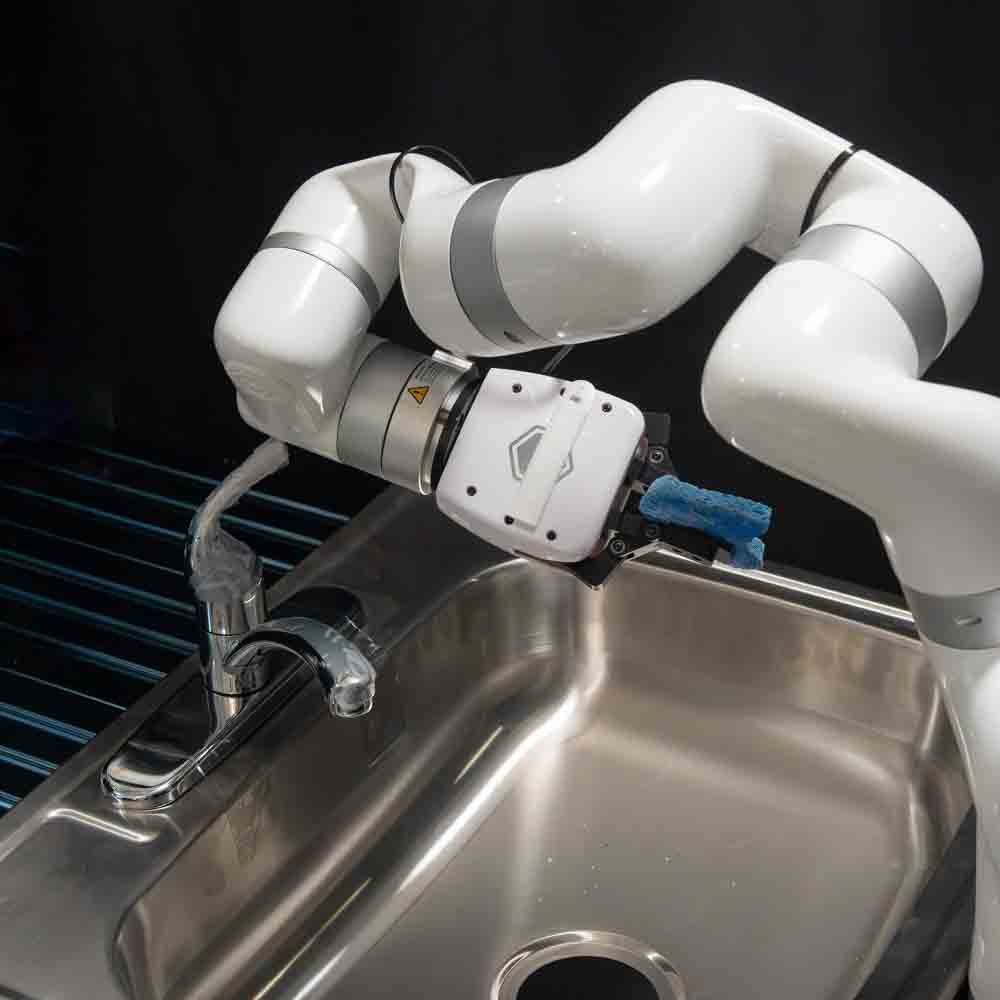

The hand keeps a wet pad above the sink while the arm turns the faucet off.

The hand stays tied to a fixed point while the arm presses the button.

A contact trajectory learned from bare-hand humans, plus end-effector constraints a VLM generates from the task description, lets a robot manipulate with its whole arm while its hand stays committed to another task. WACL's demonstrations need no teleoperation, and new constraints need no retraining.

Abstract

Robot manipulation has traditionally relied on end-effector-centric interactions. In contrast, humans routinely exploit whole-arm contacts to improve efficiency, robustness, and adaptability, especially when the hands are occupied or when precise grasping is unnecessary. Enabling similar capabilities in robots remains challenging: the robot must select where on its arm to make contact, generate effective non-prehensile interactions, and satisfy task-specific pose or safety constraints on the end-effector.

We propose Whole-Arm Contact Learning (WACL), a hierarchical framework that describes each whole-arm contact task with three robot-agnostic representations and hands them to a quasi-static surface-contact optimizer: semantic keypoints that summarize the scene, a reference contact trajectory that specifies where and how the arm presses on the object, and safety-aware path constraints that a vision-language model generates from the task description to protect the end-effector's task. The robot's kinematic chain enters only in this optimizer, which grounds these representations onto the arm by jointly searching over which link makes contact, where on that link, and the joint configuration that realizes it.

This decomposition lets WACL learn the contact trajectory from 10 bare-hand human demonstrations per task collected without teleoperation, while new end-effector constraints change only the optimizer's input rather than any trained component. Real-world experiments on a 7-DoF arm across four whole-arm tasks show that WACL sustains contact under end-effector constraints where a strong link-pose baseline fails (78% vs. 33% success) and generalizes to new constraints without retraining.

Why Whole-Arm Contact?

In daily life, manipulation is rarely confined to the fingertips. When our hands are already occupied — carrying a load or holding a cup of coffee — we recruit the rest of the arm: nudging a door open with an elbow, steadying a box against a forearm.

This is a two-task problem: the hand keeps the cup upright (the primary task) while the arm presses a button or pushes a drawer shut (the secondary task). Whatever the arm does must not disturb what the hand is already committed to.

Robot manipulation, however, remains overwhelmingly end-effector-centric. Pre-trained VLAs output gripper-pose actions and treat the arm as a transport mechanism, so arm-environment contact is usually avoided rather than exploited. This discards useful kinematic redundancy and limits the robot in constrained or cluttered settings, where whole-arm contact may be necessary because a gripper-only motion is infeasible. Learning whole-arm manipulation end-to-end is difficult for two compounding reasons.

Coffee task
Cabinet task
Faucet task
Button task

Within-robot generalization gap

The same contact task looks entirely different depending on which link executes it — different pixels, different joint angles. That makes transferring contact behavior across links difficult for a policy trained on raw observations.

Human-to-robot embodiment gap

People make whole-arm contact naturally, but teleoperating a 7-DoF arm into the same contacts is slow and unintuitive, and typically needs a leader-follower system or an exoskeleton. Bare-hand demonstrations are a more natural data source, but they carry no robot actions and leave a human-to-robot embodiment gap.

Method

From Human Demonstrations to Contact Trajectories

Teleoperating a 7-DoF arm into whole-arm contact is slow and unintuitive. WACL instead learns from bare-hand demonstrations recorded at 10 Hz by three calibrated RGB-D cameras (two scene cameras and the arm's wrist camera), with no teleoperation hardware and no robot demonstrations. From these it distills semantic keypoints and a reference contact trajectory: where on the object the arm should press and which way the surface faces. Because neither representation names a particular link, the learned behavior is robot-agnostic.

A person shows the task bare-handed,
without teleoperating the robot.

The robot learns to open the coffee machine with its arm while the hand keeps the cup upright.

Whole-Arm Contact Learning

The contact trajectory is one of three robot-agnostic abstractions WACL passes to a surface-contact optimizer. The other two are semantic keypoints that summarize the scene and VLM-generated safety-aware path constraints that encode what the primary end-effector task demands — keep a cup upright, stay above the sink. The robot's kinematic chain enters only here: the optimizer jointly searches over which link makes contact, where on that link, and the joint configuration, so a new end-effector requirement changes only the optimizer's input, not any trained component.

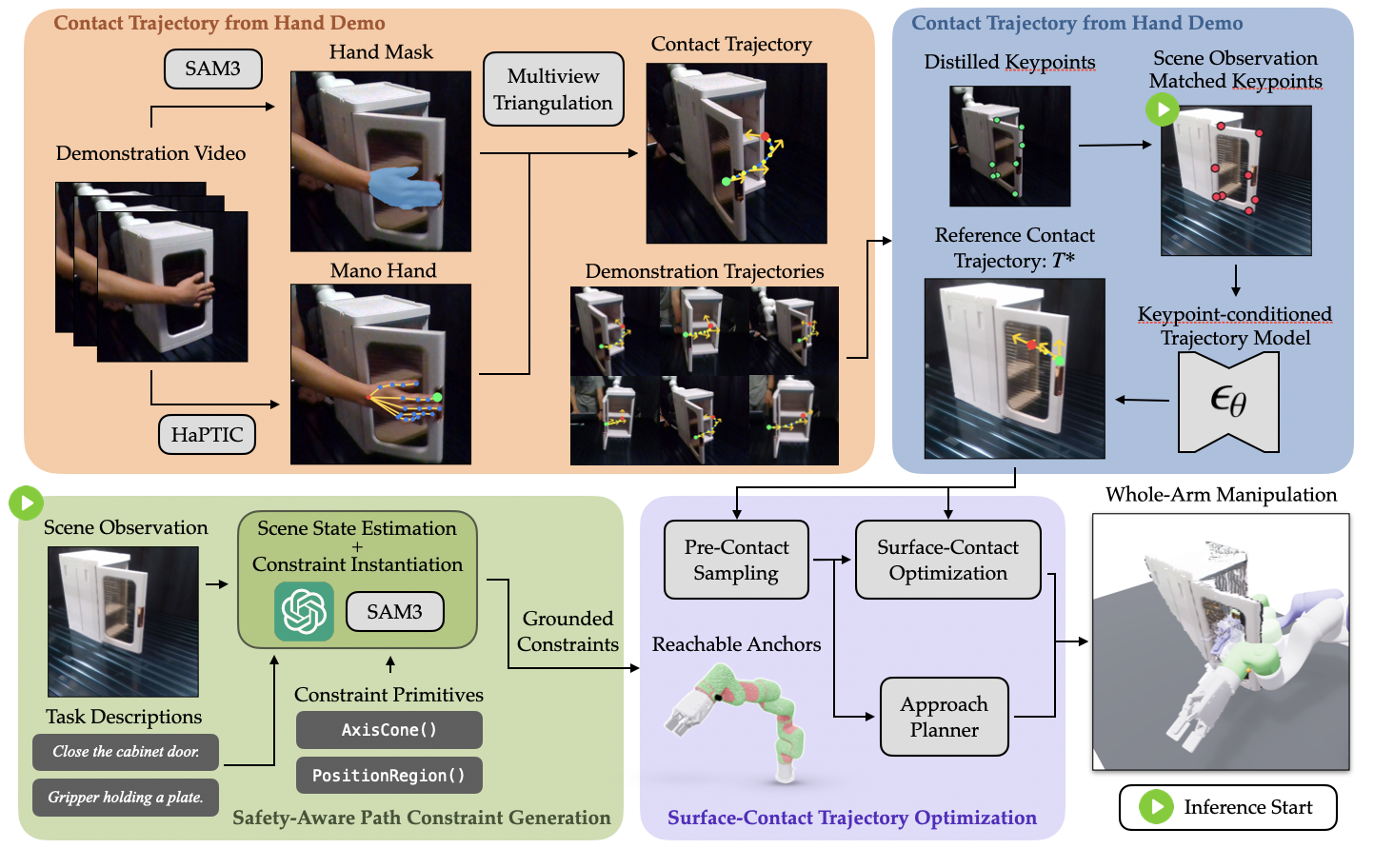

WACL framework: three robot-agnostic representations grounded by a single surface-contact optimizer
1

Contact Trajectory Learning

From 10 multi-view RGB-D bare-hand human demonstrations per task, WACL leverages KALM to distill semantic keypoints and learn a reference contact trajectory: where on the object to make contact and the surface normal to follow. It commits to no particular link, so the behavior stays robot-agnostic.

2

Safety-Aware Path Constraints

A vision-language model (GPT-5.5) turns the task description and scene into safety-aware path constraints on the end-effector, such as keep a held cup upright or stay above the sink, built from a fixed vocabulary of two primitives (AxisCone, PositionRegion). They are regenerated at every inference, so a new end-effector constraint needs no retraining.

3

Surface-Contact Optimization

Only here does the robot's kinematics enter. A surface-contact optimizer searches jointly over which link makes contact, surface anchors on that link, and the joint configuration, assembling a collision-free trajectory that tracks the contact target while every constraint holds.

Baseline Comparison

The baseline is KALM, a keypoint-conditioned diffusion policy whose keypoint pipeline WACL shares, retrained to regress the 6-DoF pose of one contact link. It runs through the same optimizer, with the anchor search disabled. Committing to a link pose leaves IK no freedom once a constraint on the hand binds. WACL only says where and how to touch the object and lets the optimizer choose the link and the anchor on it, so it can reroute the contact and keep the hand's task intact. (KALM learns from teleoperated demonstrations, since a bare hand cannot define a link pose; WACL learns from bare-hand ones. The comparison does not separate these two effects.)

Task success when the hand is constrained
78% WACL (ours)
vs
33% KALM baseline
Task Unconstrained Constrained End-effector constraint
KALM WACL (ours) WACL (FR3) KALM WACL (ours) WACL (FR3)
OpenCoffee 4/106/105/10 2/107/104/10 Hold cup upright
CloseCabinet 7/107/108/10 5/108/107/10 Hold plate level
CloseFaucet 6/108/108/10 3/107/108/10 Keep gripper above sink
PressButton 6/109/109/10 3/109/108/10 Stay tethered by rope
Aggregate 58%75%75% 33% 78%68%
Real-world successes over 10 rollouts per cell, with 10 demonstrations per task. KALM and WACL (ours) run on the xArm 7; WACL (FR3) runs zero-shot on a Franka FR3, with only the optimizer's robot model changed. Under constraints, WACL more than doubles KALM's aggregate success (78% vs. 33%).
✓ WACL (ours)
WACL keeps the cup upright the whole time, routing the contact through a link on the arm to open the coffee machine.
✗ KALM baseline (no cup constraint)
Shown without the cup constraint. The link-pose baseline is already unreliable here (4/10 on OpenCoffee) and falls to 2/10 once the cup must stay upright (WACL: 6/10 and 7/10).

Aggregated over the four tasks, the constrained gap (31/40 vs. 13/40) is significant (exact McNemar test on the paired placements, p = 4.0×10⁻⁵); the unconstrained gap is not (p = 0.12). An offline replay of 30 logged scenes per task through both planners shows the same pattern (complete plans, WACL vs. KALM): on CloseFaucet, 30/30 vs. 3/30 with the constraint and 30/30 vs. 29/30 without it; on OpenCoffee, 26/30 vs. 2/30 with it and 30/30 vs. 7/30 without it, so there KALM's committed link pose limits it even without the constraint. The GPT-5.5 constraint generator was audited offline on 100 unfiltered generations: 94 were fully correct, the remaining 6 were over-constrained and would surface as “no plan”, and none was looser than deployed.

Generalization

Contact Regions

WACL jointly optimizes the contact link, the contact surface point, and the joint configuration to find the best way to complete the task while satisfying all constraints. In the three runs below it presses the same button from three different object positions and joint configurations. It uses different parts of the arm for each run.

New Constraints

A VLM regenerates the end-effector constraints from the task description at every inference, so changing the end-effector task is a change of input, with no retraining. Here we make the faucet task harder by swapping the pad for a cup: now WACL must keep the cup upright and hold it above the sink at the same time. It succeeds 7/10 with one constraint and with two.

What Makes It Work

Remove one piece at a time and see what breaks. Every row runs 10 rollouts on the same marked placements as the full model.

The contact has to slide

OpenCoffee. Pin the anchor to one spot on the link and the motion turns IK-infeasible halfway, under the cup-upright constraint.

WACL7/10
fixed anchor3/10

The optimizer picks the link

PressButton. Each link reaches placements the other misses; searching over both recovers them.

WACL9/10
link 5 only6/10
link 6 only7/10

Learning beats a hand-specified arc

OpenCoffee. The lid does not move on an arc: the capsule carriage slides while the lid rotates less than the handle. The policy learns that motion from demonstrations.

WACL7/10
hand-specified arc4/10

A second constraint is free

CloseFaucet. Add a cup-upright constraint on top of the above-sink one: same success, no retraining.

one constraint7/10
two constraints7/10
Full results
Variant What changes Task Variant Full WACL
+ second constraint cup-upright AxisCone added CloseFaucet 7/107/10
w/o sliding anchor anchor fixed at first waypoint OpenCoffee 3/107/10
w/o link search link fixed to link 5 PressButton 6/109/10
link fixed to link 6 PressButton 7/109/10
geometric primitive hand-specified arc as trajectory OpenCoffee 4/107/10
hand-specified line as trajectory PressButton 7/109/10
registered replay ICP-registered demonstration OpenCoffee 6/107/10

Generalization, ablations, and controls. Each variant runs 10 rollouts on one constrained task, on the same placements as the full model. A second end-effector constraint leaves success unchanged, while removing an optimizer component or replacing the learned trajectory lowers it.

BibTeX

Cite this paper
@inproceedings{huang2026wacl,
  title     = {Beyond the End-Effector: Learning Whole-Arm Contact Manipulation from Human Demonstrations},
  author    = {Bo-Ruei Huang and Daniel Seita and Erdem B{\i}y{\i}k},
  booktitle = {Conference on Robot Learning (CoRL)},
  year      = {2026}
}
